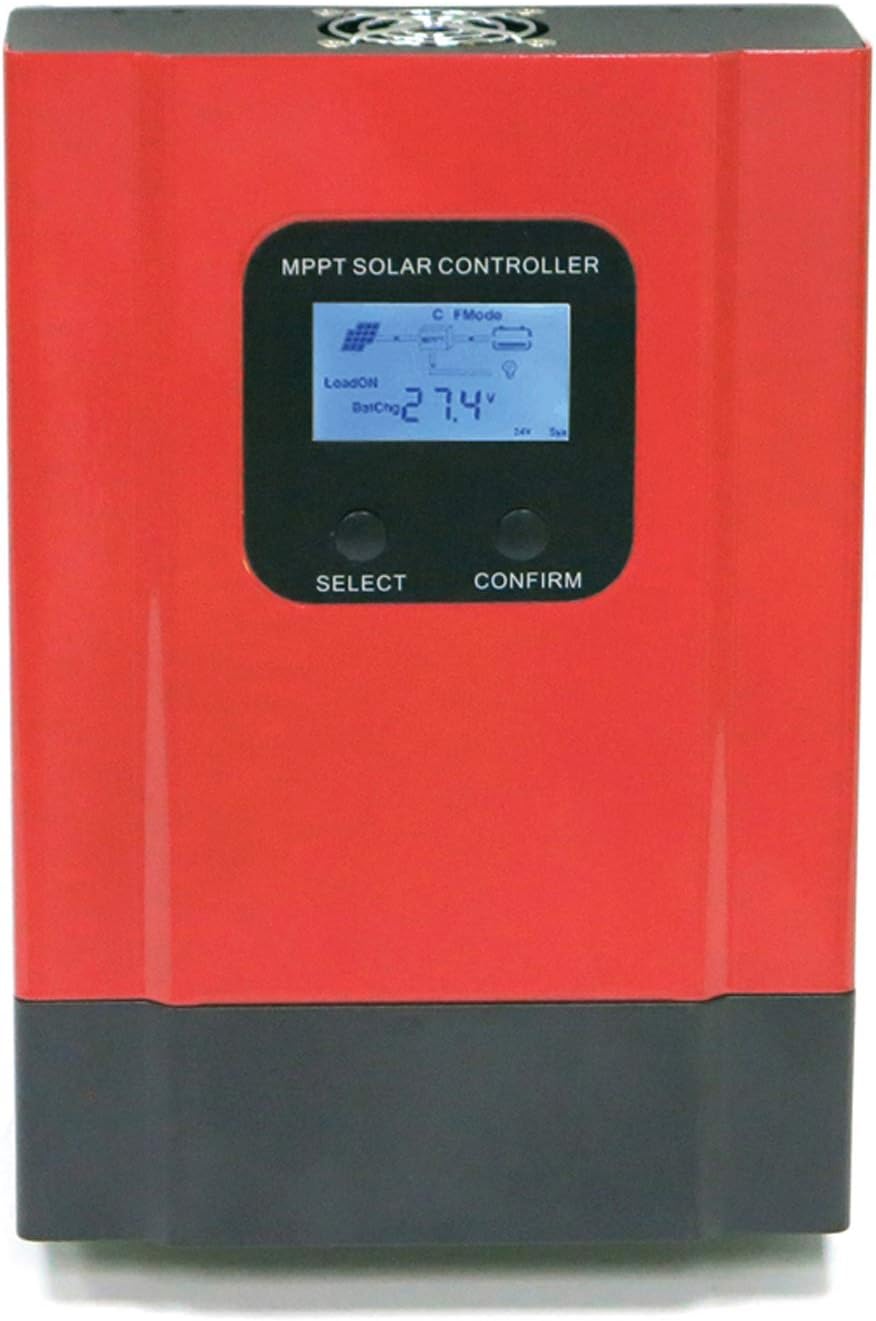

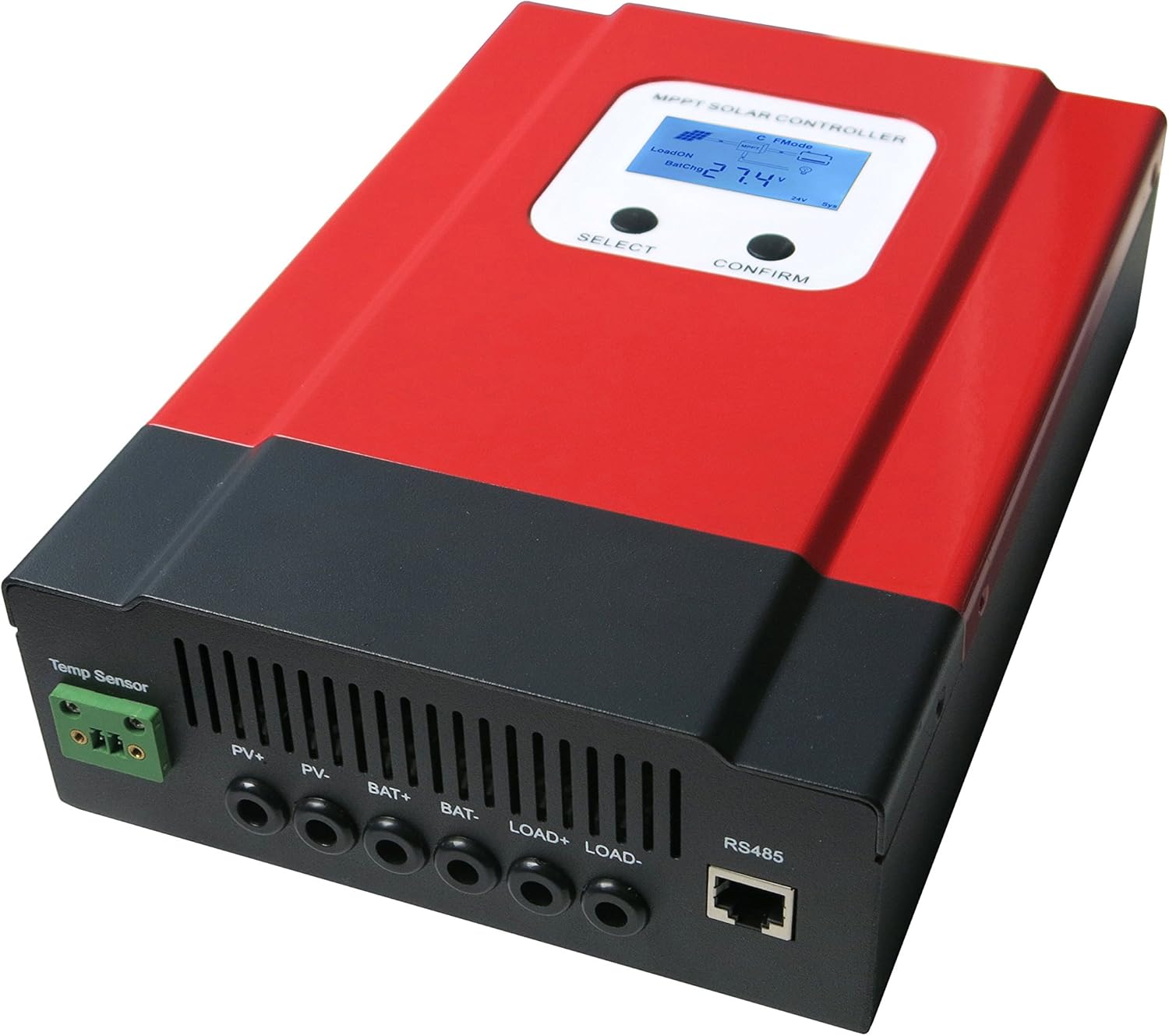

Customer reviews KRXNY 40A MPPT Solar Charge Controller 12V/24V/36V/48V Battery Regulator Max 150V PV Input
So you can check out the other reviews Uр Tо 60% оƒƒ KRXNY 40A MPPT Solar Charge Controller 12V/24V/36V/48V Battery Regulator Max 150V PV Input at Amazon.com
only with $
| Brand | KRXNY |
| Item Dimensions LxWxH | 9.5 x 6.7 x 2.6 inches |
| Item Weight | 2 Kilograms |
- The 3rd generation of MPPT Solar Controller;Advance MPPT efficiency ≥99.5%
- Intelligent LCD : System/PV/BAT Voltage;BAT Charging Current/watt/kwh/temp/Type;Load Mode.
- Battery Range : 9V-60V;For AGM / Lithium / Gel / Flooded Batteries;
- Fit for VOC 150V Solar Panel;2080W(48V),1560(36V);1040(24V);520W(12V)
- Warranty : 2 years warranty;36-60months lifetime.
Product Description
Notice: This MPPT Solar Controller only works for off-grid solar system.
Features :
Advanced MPPT efficiency ≥99.5%，Machine conversion efficiency ≥98%; DC12V/24V/36V/48V battery system automatic recognition; Maximum PV input voltage 150V ;
3-Stage charge to extend your battery life ;
Discharge mode: ON/OFF mode, PV voltage control mode.
Battery Range : 9V-60V;For AGM / Lithium / Gel / Flooded Batteries;
Intelligent LCD : System/PV/BAT Voltage;BAT Charging Current/watt/kwh/temp/Type;Load Mode.
RS485 communication.
2 years warranty
Notice:
1.If you want to connect PC/Laptop,you need to buy an communication cable RS485.If you need to use with Mobile APP, please buy WIFI Modular with us . Send us messenger via Amazon. And nowadays our WIFI Modular can only work with Iphone , Android phone system upgrade too fast .
2.When charge 12V battery, your PV Input need to be more than 18V , when charge 24V battery , PV Input need to be more than 30V, when charge 48V battery , PV Input more than 60V.
Charge Mode:MPPT(Maximum Power Point Tracking)
MPPT Efficiency:≥99.5%
Max PV Input: 150V (Voc)
Max charge current: 40A
Max Input Power:
520W (12v battery system)
1040W (24v battery system)
1560W (36v battery system)
2080W (48v battery system)
System voltage
12V battery system:DC9V~DC15V
24V battery system:DC18V~DC30V
36V battery system:DC32V~DC40V
48V battery system:DC42V~DC60V
Constant Voltage:Please check the charge voltage according to the battery type form Contant Voltage(CV) Floating Voltage (CF):
Flooded: CV 14.6V CF 13.8V
Sealed: CV 14.4V CF 13.8V
Gel: CV 14.2V CF 13.8V
User(setting) : CV (9V~15V) CF (9V~15V)(You need to setup by PC,and you need to buy an RS485 Communication cable)

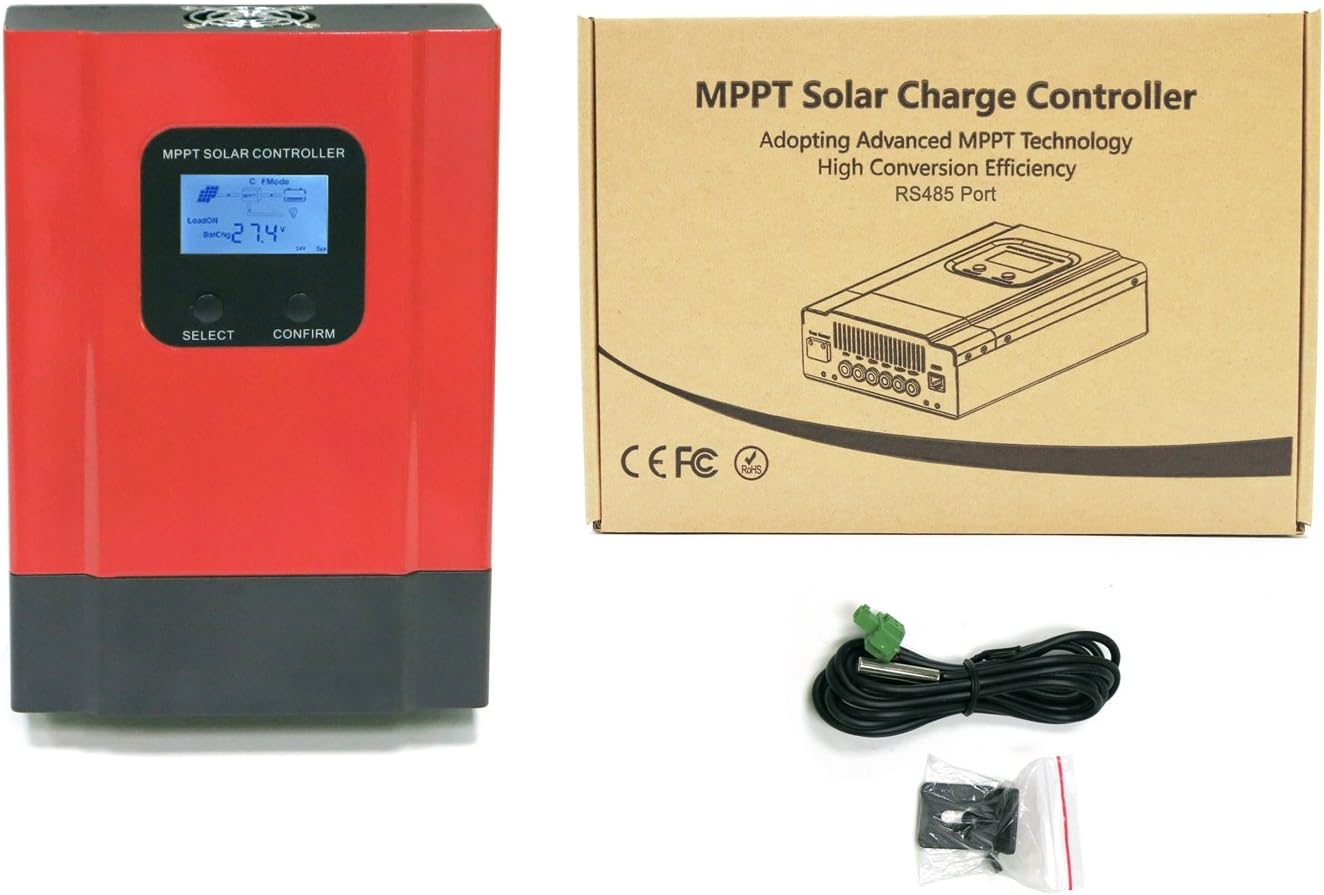

Package including:
1.1PCS 60A MPPT solar charge controller 2.1PCS English User Manual 3.1PCS Temp. Sensor 4.2pcs Hang Bracket
----------------------------
